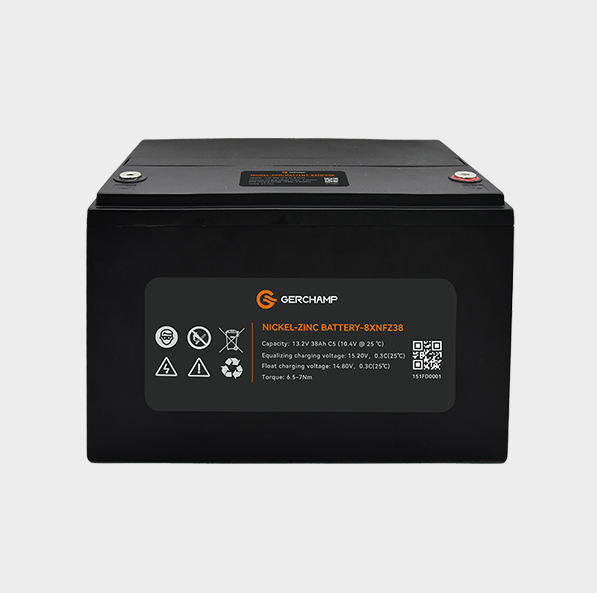

The Gerchamp 8XNFZ38 nickel-zinc data center battery backup system provides a lightweight, highly safe, and environmentally friendly backup solution for key facilities by virtue of the non-fire characteristics of 3C high-rate discharge and UL9540A certification.
Rated Voltage
13.2V
Maximum Discharge Rate
3C
Fire Safety Standard
UL9540A
Suitable for O&M teams responsible for hyperscale centers to solve space constraints and load-bearing problems.
Ideal for bank settlement centers with high fire protection requirements, providing a physical-level safety barrier for core transaction data.

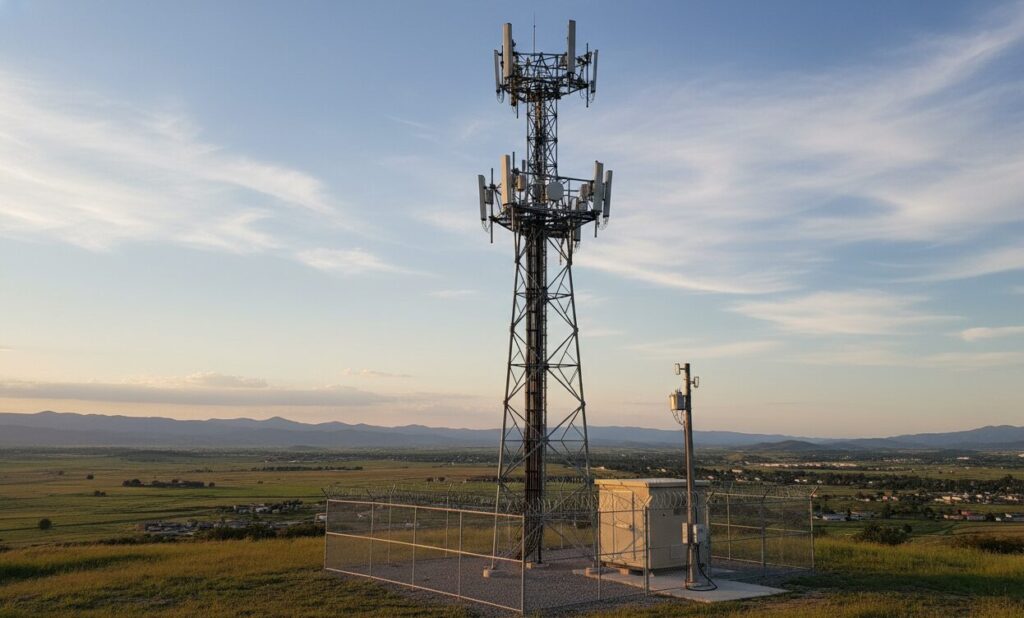

Provides maintenance-free and easy-to-recover green energy solutions for widely distributed edge nodes.

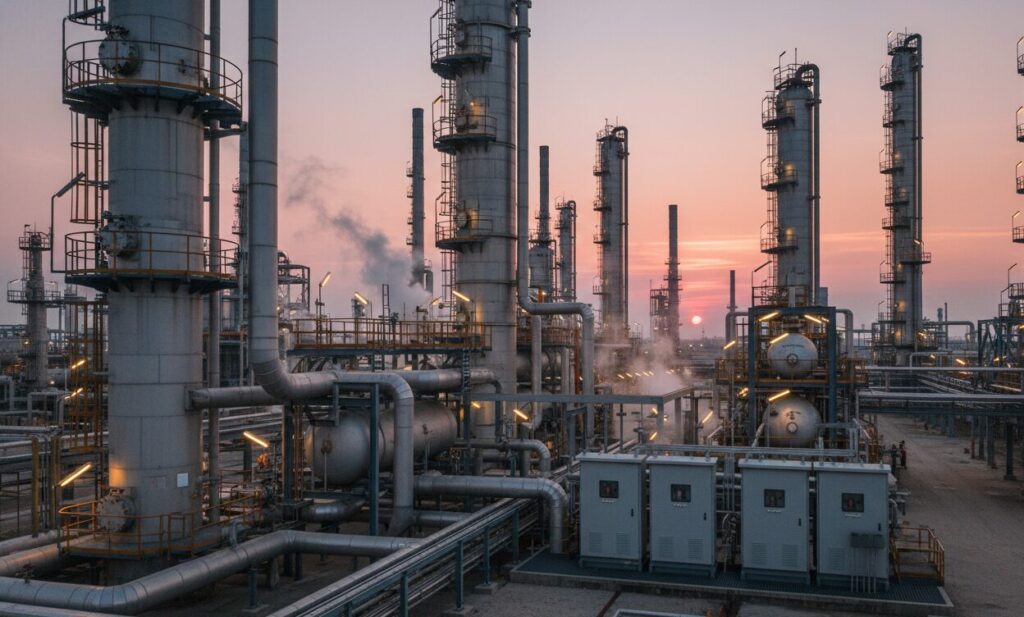

The UL9540A certified fire-free feature improves the reliability of emergency power systems in safety-sensitive industrial environments.
Support continuous discharge at the highest 3C rate, meeting the instantaneous high-power output requirements of the data center, significantly reducing the number of parallel battery packs and saving installation space.
Through the UL9540A extreme thermal runaway test, there is no circuit failure during discharge, no explosion or fire risk, and the safety is significantly better than traditional lead-acid and lithium battery solutions.
With a gravimetric energy density of 67.7 Wh/kg and a total weight of only 7.8kg (±200g), this system greatly reduces the floor load of high-rise machine rooms.
Supports stable operation in the range of -20°C to 55°C, ensuring that the backup power supply can still respond reliably in extreme environments.
With 1C fast charging rate, the standby power-up time after power interruption is greatly shortened, ensuring the system is ready at any time for consecutive failures.
The use of V0-grade flame-retardant ABS engineering materials and no heavy metal pollution, in line with RoHS directives and EU regulations, helps enterprises achieve green data center construction standards.
| Technical Parameters | 8XNFZ38 Detailed Specifications |
| Rated Voltage | 13.2V (8 x 1.65V batteries) |
| Nominal Capacity | 38Ah (1C discharge to 10.4V) |
| Nominal Power | 920W (30-minute frequency) |
| Product Weight | 7,800 ± 200g |
| Volumetric Energy Density | 137.4 Wh/L |
| Internal Resistance | < 8mΩ |
| Fast Charging Speed | 1C (10°C to 45°C) |
| Maximum Discharge Rate | 3C (-10°C to 55°C) |
| Shell Material Grade | V0 flame-retardant ABS |
| Authoritative Certification | UL9540A, RoHS, TTL |
The battery backup system of Gerchamp data center adopts an advanced nickel-zinc chemical system. Its volumetric energy density of 137.4 Wh/L is far higher than that of traditional lead-acid batteries, significantly improving the power backup efficiency per unit area of the computer room.
Gerchamp solves the problem of requiring additional reinforced floors due to the excessive weight of traditional batteries. The lightweight design makes backup system deployment more flexible and efficient.
The Gerchamp 8XNFZ38 nickel-zinc data center battery backup system provides a lightweight, highly safe, and environmentally friendly backup solution for key facilities by virtue of the non-fire characteristics of 3C high-rate discharge and UL9540A certification.
13.2V
Rated Voltage
3C
Maximum Discharge Rate
UL9540A
Fire Safety Standard
Support continuous discharge at the highest 3C rate, meeting the instantaneous high-power output requirements of the data center, significantly reducing the number of parallel battery packs and saving installation space.
Through the UL9540A extreme thermal runaway test, there is no circuit failure during discharge, no explosion or fire risk, and the safety is significantly better than traditional lead-acid and lithium battery solutions.
With a gravimetric energy density of 67.7 Wh/kg and a total weight of only 7.8kg (±200g), this system greatly reduces the floor load of high-rise machine rooms.
Supports stable operation in the range of -20°C to 55°C, ensuring that the backup power supply can still respond reliably in extreme environments.
With 1C fast charging rate, the standby power-up time after power interruption is greatly shortened, ensuring the system is ready at any time for consecutive failures.
The use of V0-grade flame-retardant ABS engineering materials and no heavy metal pollution, in line with RoHS directives and EU regulations, helps enterprises achieve green data center construction standards.
| Technical Parameters | 8XNFZ38 Detailed Specifications |
| Rated Voltage | 13.2V (8 x 1.65V batteries) |
| Nominal Capacity | 38Ah (1C discharge to 10.4V) |
| Nominal Power | 920W (30-minute frequency) |
| Product Weight | 7,800 ± 200g |
| Volumetric Energy Density | 137.4 Wh/L |
| Internal Resistance | < 8mΩ |
| Fast Charging Speed | 1C (10°C to 45°C) |
| Maximum Discharge Rate | 3C (-10°C to 55°C) |
| Shell Material Grade | V0 flame-retardant ABS |
| Authoritative Certification | UL9540A, RoHS, TTL |
Suitable for O&M teams responsible for hyperscale centers to solve space constraints and load-bearing problems.
Ideal for bank settlement centers with high fire protection requirements, providing a physical-level safety barrier for core transaction data.
Provides maintenance-free and easy-to-recover green energy solutions for widely distributed edge nodes.
The UL9540A certified fire-free feature improves the reliability of emergency power systems in safety-sensitive industrial environments.
