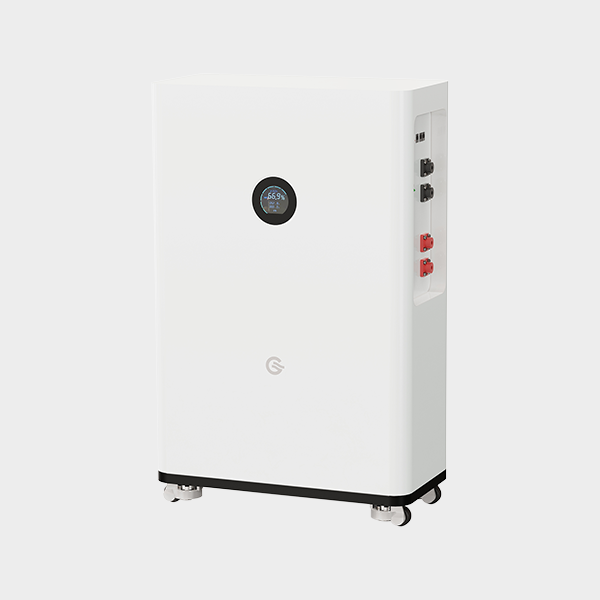

GF

Low-Voltage Floor-Mounted Battery

The GF Series low-voltage LFP battery is a high-performance, scalable solution with a flexible modular design, adaptable to diverse energy storage needs.

Features:

High Efficiency

Space Saving

Expandable System

Easy Installation

Bluetooth

All new a grade LFP battery
6000 cycle life
Scalable up to 15 modules
Plug-and-play
IP20/IP65 available

Get A Quote

Download PDF

Technical Parameters

Electrical
Model		GF-51314
Cell type		LiFePO4
Rated voltage		51.2 VDC
Voltage range		43.2～57.6VDC
Nominal capacity		314Ah
Rated capacity		16.07kWh
Standard charge/discharge current		100A
Maximum charge/discharge current		200A
Expandable parallel connection		1～15pcs
Discharge depth		90%
Cycle life^[1]		≥8000 Cycles

Environmental
Ambient humidity		≤80%RH(No condensation)
Operating temperature		Charge:0～55℃ Discharge:-20～55℃
Storage temperature		-20～55℃
Altitude		≤2000m
Cooling method		Natural cooling

Communication
Display		LCD display/LED indicator light
Communication		CAN/RS485/Bluetooth

Mechanical
Dimension		860550270mm
Weight		125kg
Protection level		IP20
Installation method		Floor-mounted

Conformance
Safety regulations		IEC62619
EMC		EN IEC61000-6-1/2/3/4
Transportation		UN 38.3

[1]Test conditions:02C charge/discharge,ambient temperature maintained at 25±2℃,80%DOD
